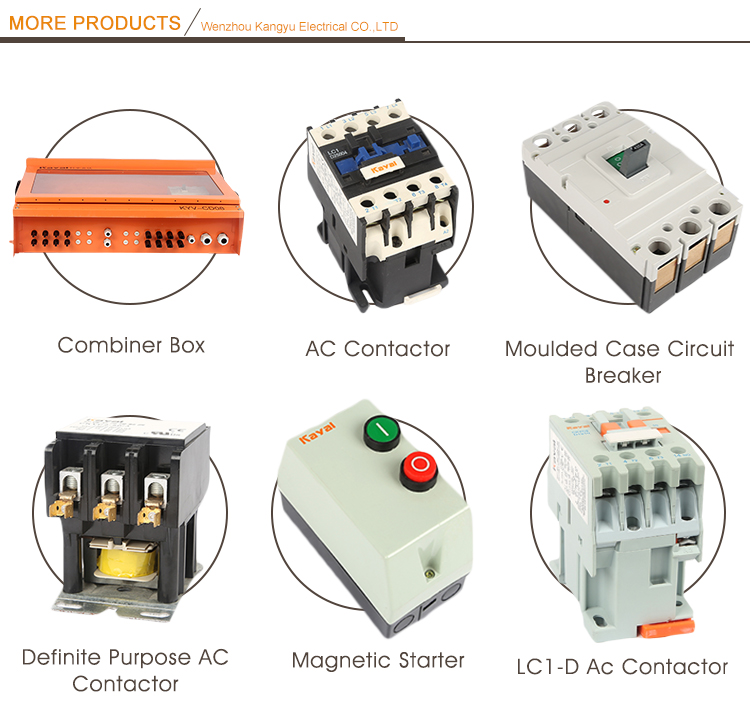

Mehr Produkte
\ n \ n Firmeninformationen
\ n

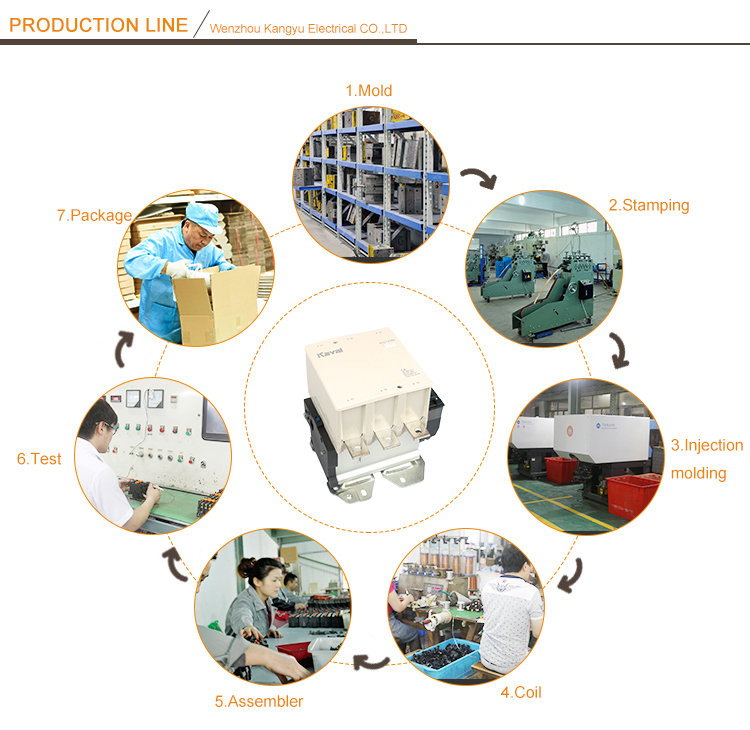

Fließband
\ n \ n Verpackung & Versand
\ n \ n Unser Vorteil
\ n FAQ
\ n \ n

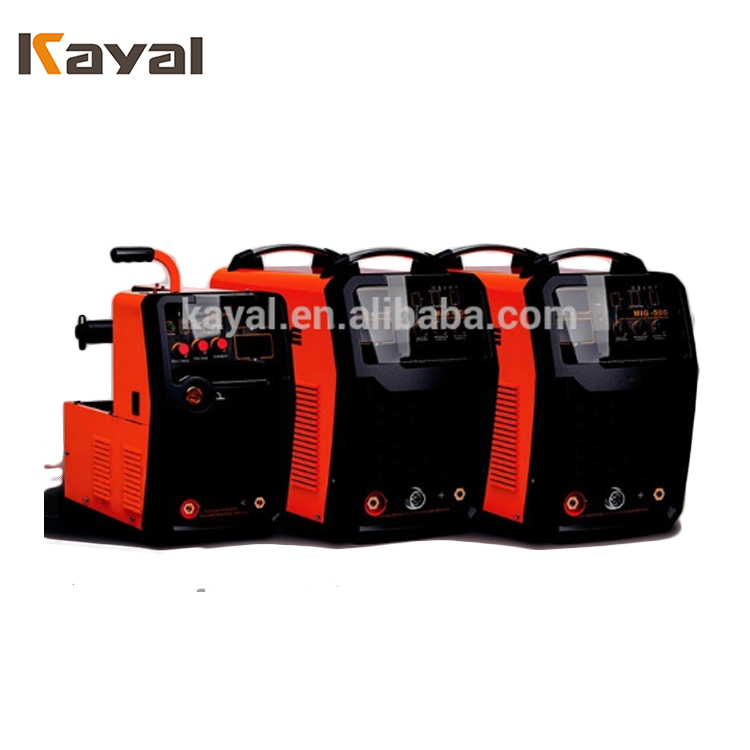

INVERTER CO2 GAS SHIELDED WELDING MACHINE |
•Latest plastic panel design, exclusive and attractive appearance as well as the better protection. |
•Transparent shielding cover protect the machine from dust, moisture, corrosion, make the machine work more reliably in bad working environment. |
•Current range from 160A to 630A, to meet all kinds of different needs. |
•Soft switch technology of IGBT with high reliability. |
•Widely used in electric powder, steel structure and shipping building etc. industries. |

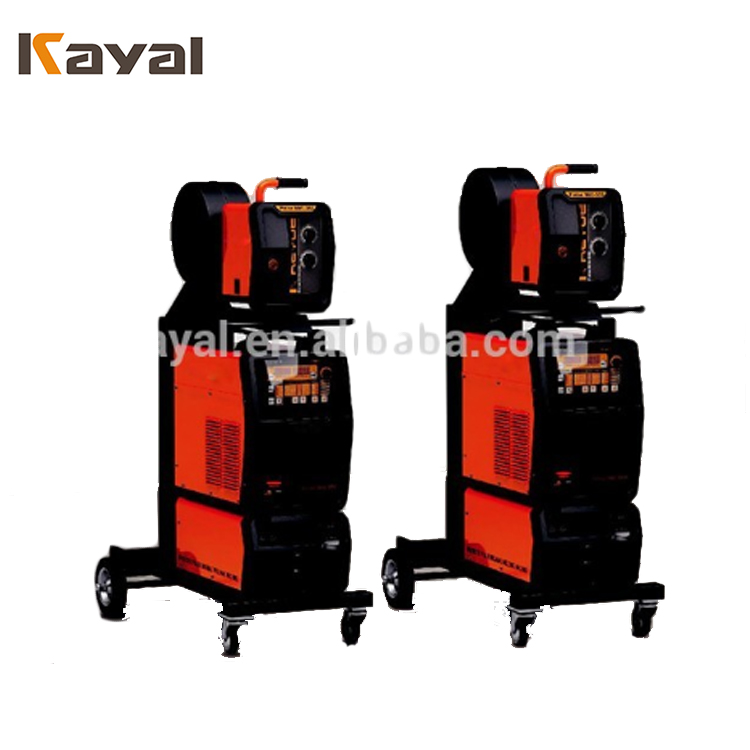

INVERTER CO2 GAS SHIELDED WELDING MACHINE |
IGBT TYPE |
•Support MMA, MIG, Lift TIG 3 functions |
•IGBT technology, the core adopts advanced IGBT inverter device |
•Suitable for welding metal plate with thickness above 0.8mm |
•Inductance control for arc stability and spatter control |
•Digital voltage and ampere meters |
•Wire size selection, do a favor to quickly matching the welding parameter |
•Over current and over voltage protections are available |
•Small splashing and great penetration |
•Energy saving-compared with the traditional GMAW machine more efficient |
•Widely used in electric power, steel structure, shipbuilding and other industries |
Model | MIG-200 | MIG-250 | MIG-350 | MIG-500 | |
Rated input voltage (V) | 1PH AC220±15% | 3PH AC380±15% | |||
Rated input power (KVA) | 6.9 | 8.3 | 13.8 | 24.3 | |
Rated input current (A) | 31 | 12.3 | 21 | 37 | |
Rated output | 24V/200A | 26.5V/250A | 31.5V/350A | 39V/500A | |
Output current (A) | 50-200 | 60-250 | 60-350 | 60-500 | |
No-load voltage (V) | 54±5 | 64±5 | 65±5 | 80±5 | |
Rated duty cycle (%) | 60% | 200A(40%) | 250A | 350A | 500A |
(40°C 10min) | 100% | 127A | 193A | 271A | 387A |
Efficiency (%) | 70 | 80 | 80 | 80 | |
Protection grade | IP21 | IP21 | IP21 | IP21 | |
Insulation grade | F | F | F | F | |
Type of wire feeder | built -in | built-in | separated | separated | |
Net weight (Kg) | 28.5 | 29 | 34.3 | 37.5 | |
Gross weight (Kg) | 32.5 | 33 | 38.6 | 40.7 | |
Gross weight of WF | / | / | 21 | 21 | |
Dimension of WF package (mm) | / | / | 550×425×415 | 550×425×415 | |
Dimension of machine (mm) | 610×400×605 | 610×400×605 | 650×340×590 | 650×340×590 | |
Dimension of package (mm) | 630×400×610 | 630×400×610 | 740×400×630 | 740×400×630 | |
