Home > Produkt-Liste > Anschlussklemme > TUV ROHS CE Klimaanlage magnetisch 3 Phase 220V AC Schütz

TUV ROHS CE Klimaanlage magnetisch 3 Phase 220V AC Schütz

Produktbeschreibung

\ n \ n \ n Produktbeschreibung ProduktbeschreibungSPECIFICATION \ n ------------------------------------ -------------------------------------------------- -------------------------------------------------- -------------------------------- \ n \ n
Product name Best band in China 24V-240V  new delay contact blocks
Temperature Range -40°F to 150°F
Mechanical Life(No load) Conforms to UL and ARI Specifications
Electrircal Life

Conforms to UL and ARI Specifications 94-388 thru 94-390

achieve 200,000 Cycles,make LRA at.5pf, break 125% of

FLA at. 75pf at rated voltage,10,000 cycles make and brek

LRA at.5pf rated voltage 94-394 thru 94369 achieve

100,000 cycles, make LAR at 5pf at rated voltage

6.000 cycles make and break LEA at 5pf rated voltage

Weight(approximate) 9.25 oz
Coils Frequency 50/60HZ
Coil Insulation Class B(130°)
Termination Screw and Double 1/4 Q.C.
Operate 85% of nominal coil voltage;
110% maximum safe opreate
Duty Cycle Continuous
Coil data
Steveco number Volatge Ress DC Current Nominal Max. Inrush
30 Amp 40Amp AC OHMS MA VA VA
C2-388  C2-394 24 16.5 208 5 20
C2-389  C2-395 120 420 42 5 20
C2-390  C2-396 208/240 1825 21 5 20
Contact Ratings
Type Voltage FLA LRA RES
C2-388 thru C2-390         277 30 150 40
480 30 75 40
600 30 50 40
C2-384 thru C2-396        277 40 200 50
480 40 100 50
600 40 80 50

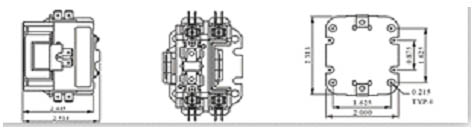

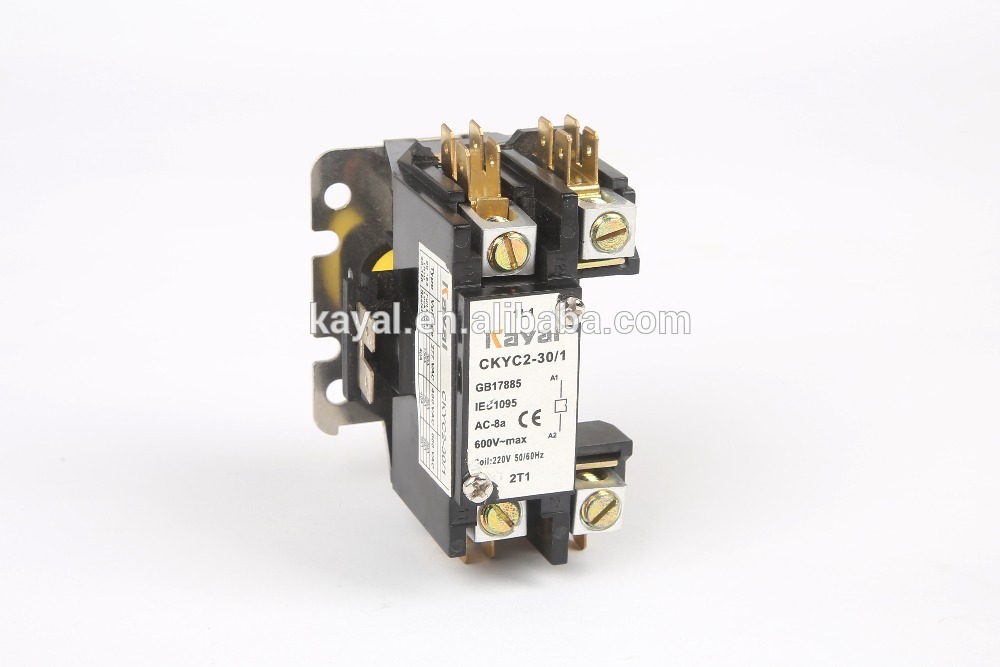

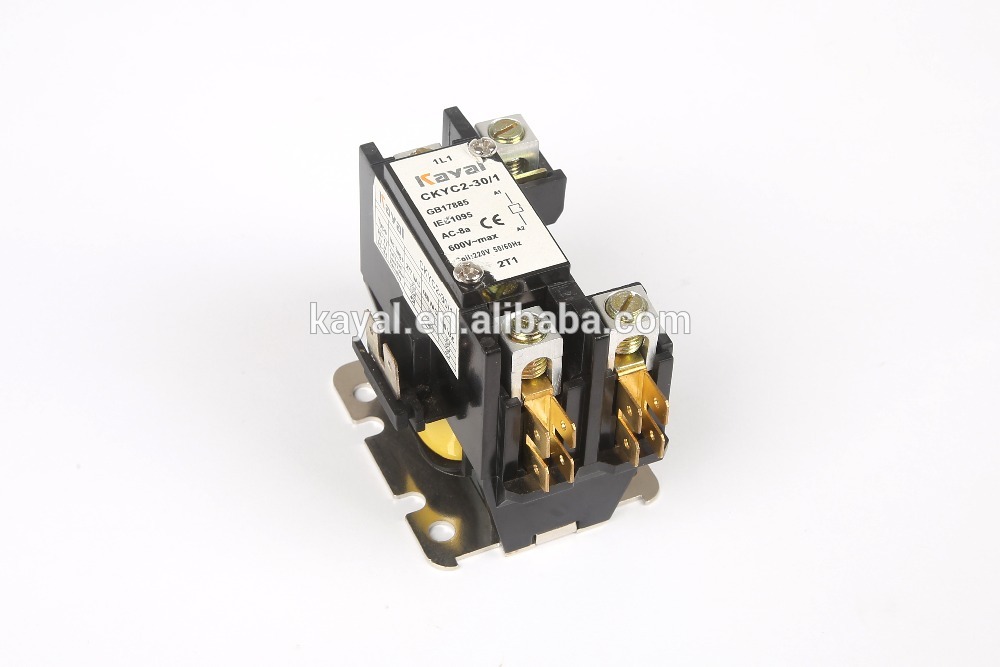

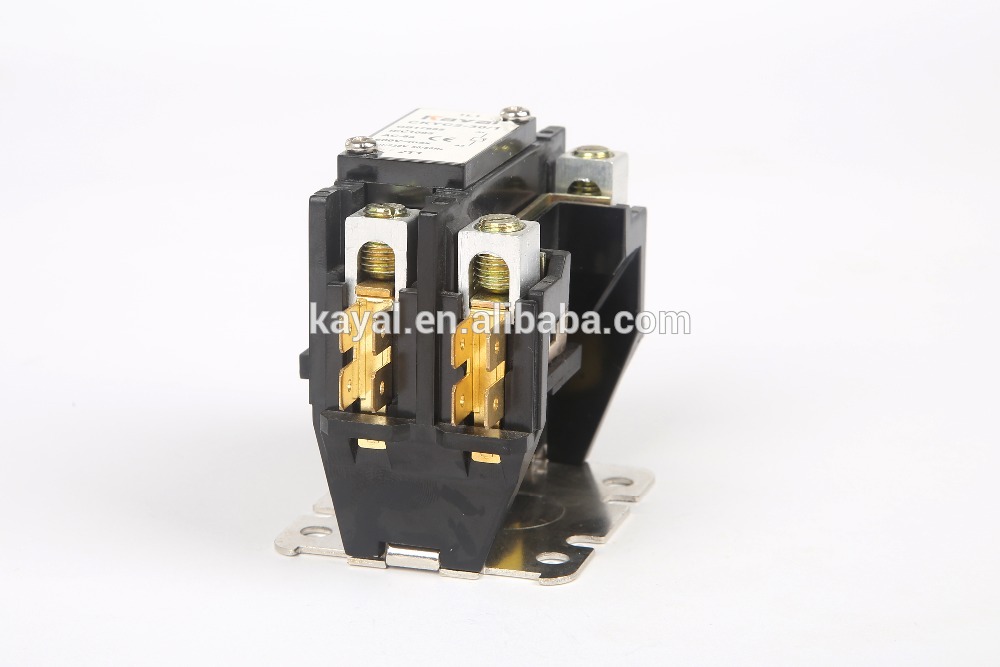

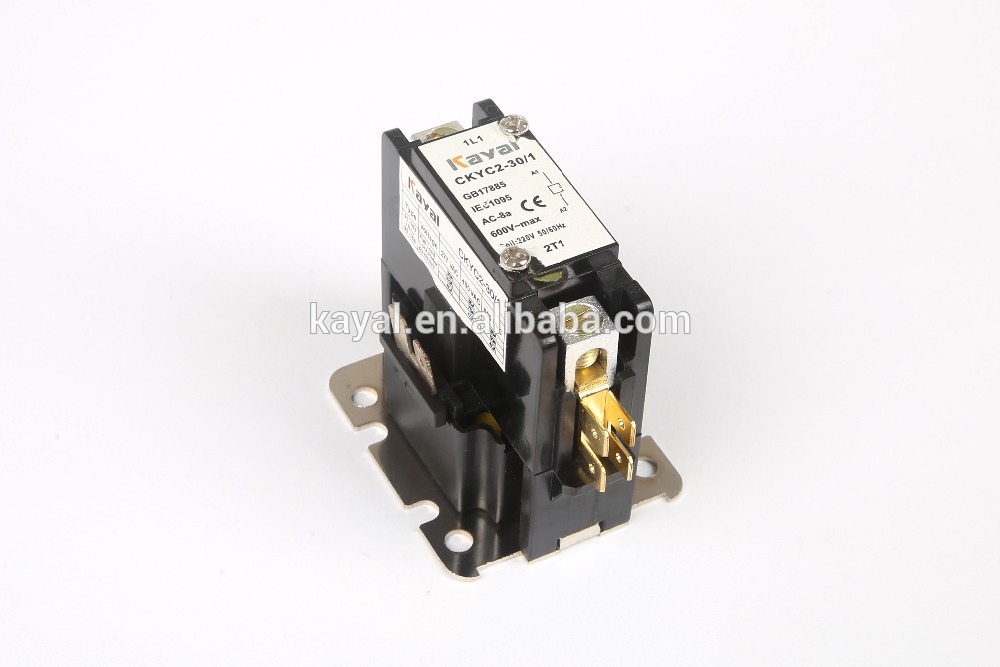

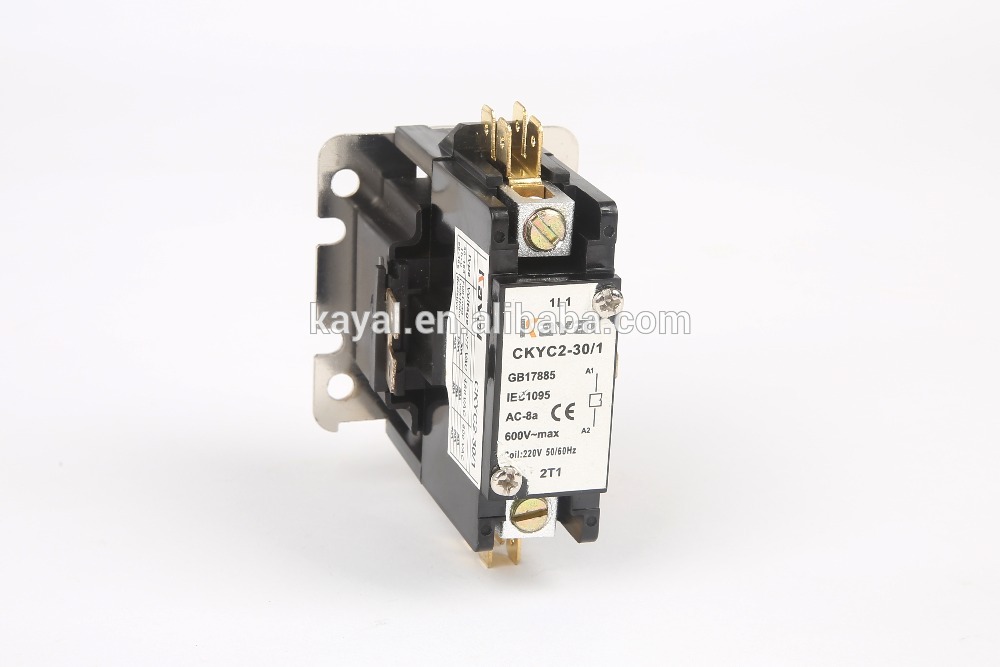

\ n \ n PRODUKTBILD \ n ---------------------------------------- -------------------------------------------------- -------------------------------------------------- ---------------------------- \ n \ n \ n \ n \ n \ n \ n \ n \ n \ n \ n \ n \ n \ n Weitere Produkte \ n \ n Firmeninformationen \ n \ n \ n Fertigungslinie \ n \ n Verpackung & Versand \ n \ n Unser Vorteil \ n FAQ \ n \ n
