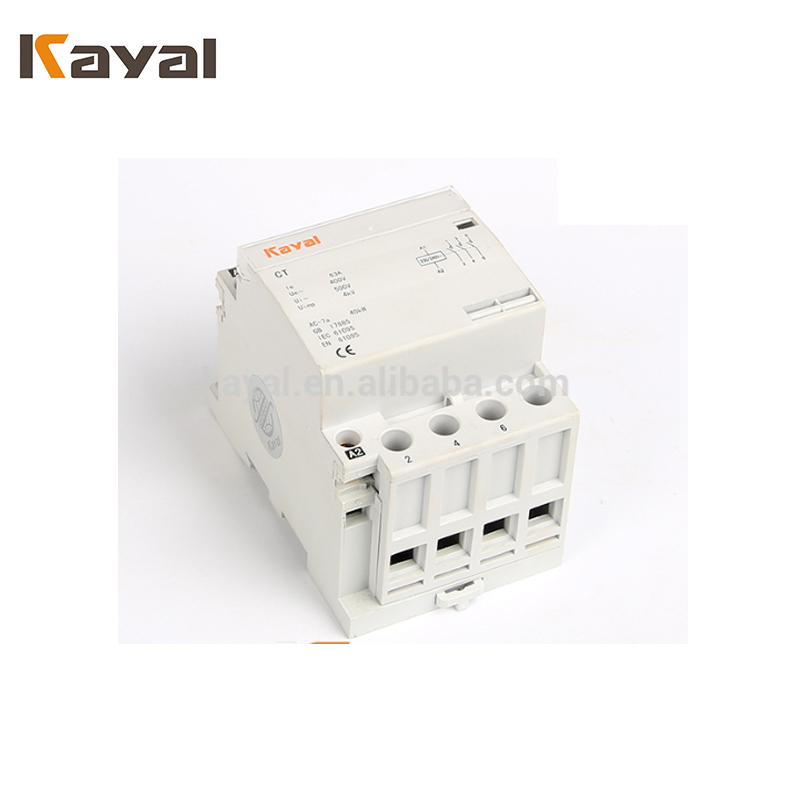

Gut verkaufen Sie 3P Haushalts-Wechselstromschütz

Produktbeschreibung

\ n \ n \ n \ n \ n \ n \ n \ n \ n \ n \ n \ n \ n \ n \ n \ n \ n Produktbeschreibung ANWENDUNG \ n --------------------------- -------------------------------------------------- -------------------------------------------------- --------------------------------------------- \ n AC-Schütz ist geeignet für den Einsatz in den Stromkreisen bis zur Nennspannung 660V AC 50 / 60Hz Nennstrom bis 95a, zum Herstellen von häufigem Anlauf und Maschinenverriegelungseinrichtung wird die Verzögerung des Schützes, des mechanischen Verriegelungsschützes Stern-Dreieck-Starters, mit dem thermischen Relais wird in den elektromagnetischen Anlasser integriert. Das Schütz wird gemäß IEC947-2, VDE 0660 und BS5452 hergestellt. \ n \ n \ n \ n SPEZIFIKATIONEN \ n ---------------- -------------------------------------------------- -------------------------------------------------- -------------------------------------------------- ------ \ n 1.Allgemein \ n
1.1 Electric ratings: up to 20A 40A 60A 230V AC50/60HZ
1.2 Utilization category: AC-1 AC-7a AC-7b
1.3 Standard: IEC/EN 61095
\ n \ n 2. Technische Daten \ n 2.1 Bewertung \ n
Model Utilization category UI(V) Ue(V) Conventional heating current Ie(A) Controlled power(KW)
CT-20 AC-1 AC-7a 500 230 20 20 4
CT-20 AC-7b 500 230 20 9 1.2
CT-40 AC-1 AC-7a 500 400 40 40 40
CT-63 AC-1 AC-7a 500 400 63 63 40
2.2 Herstellung und Ausschaltkapazität \ n
Model Utilization category Making and breaking conditions Electrification
time(s)
Interval time(s) Operating cycle
times
Ic/Ie Ur/Ue COSø
CT-20 AC-1 AC-7a 1.5 1.05 0.8 0.05 10 50
CT-20 AC-7b 8 1.05 0.45 0.05 10 50
CT-63 AC-1 AC-7a 1.5 1.05 0.8 0.05 10 50
2.3 Konventioneller Heizstrom bei unterschiedlichen Umgebungstemperaturen
Rated current 40℃ 50℃ 60℃ 70℃
Ie=20A 20A 18A 16A 14A
Ie=40A 40A 38A 36A 32A
Ie=63A 63A 57A 50A 46A
\ n 3.Eigenschaften \ n
3.1 Compact design and modularization design

3.2 Insulation material with excellent performances has been adopted to enhance

the operation securityto a great extent.

3.3 Elegant appearance, A mounting instruction diagram is appended for

convenient operation.

3.4 No noise during operation
\ n 4. Gesamt- und Montageabmessung (mm) \ n \ n \ n \ n \ n \ n \ n \ n \ n Weitere Produkte \ n \ n Firmeninformationen \ n Fließband \ n \ n Verpackung & Versand \ n \ n Unser Vorteil \ n FAQ \ n \ n
